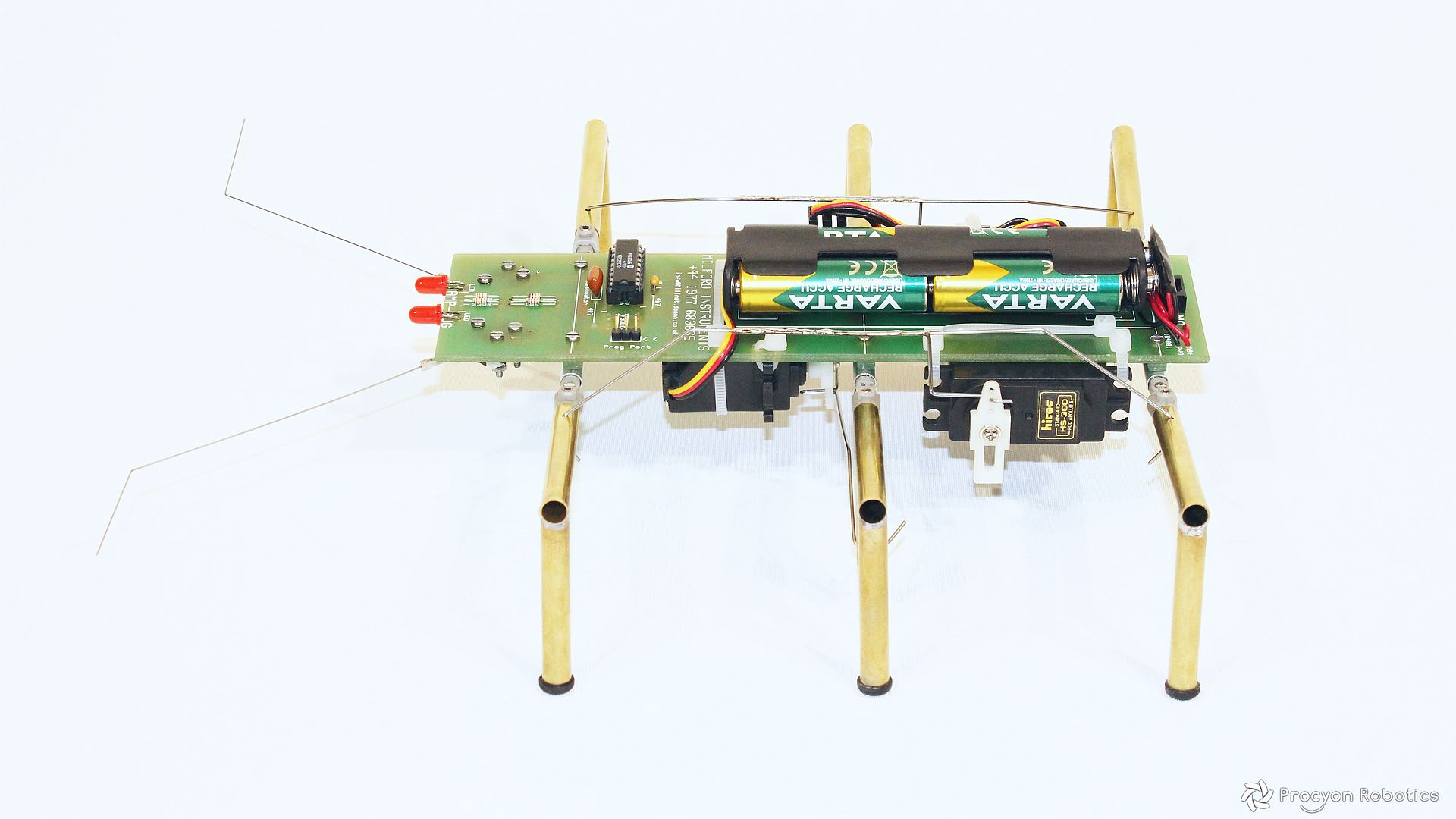

StampBug by Milford Instruments.

Version: Pre-programmed chip kit.

1997, England.

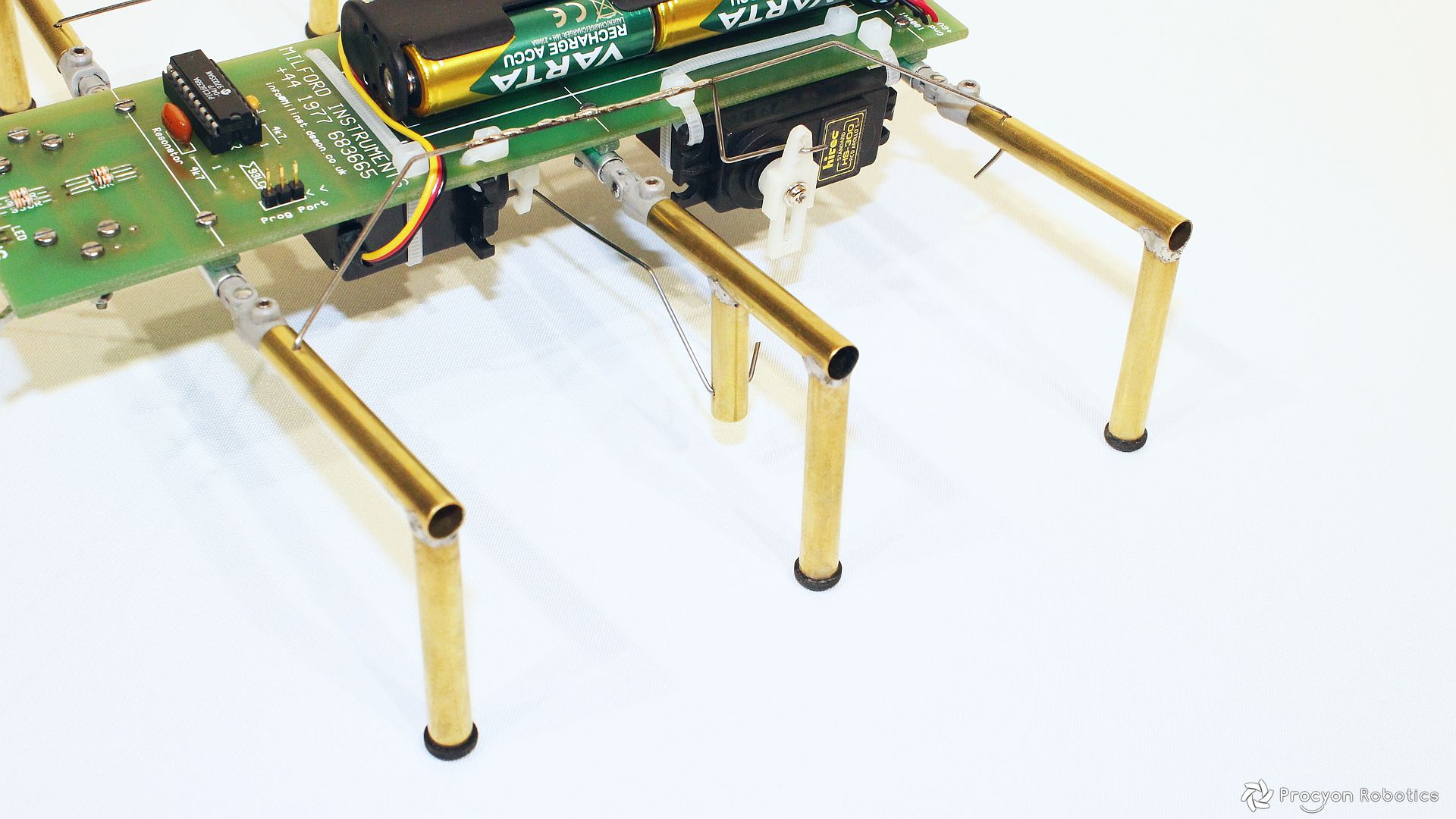

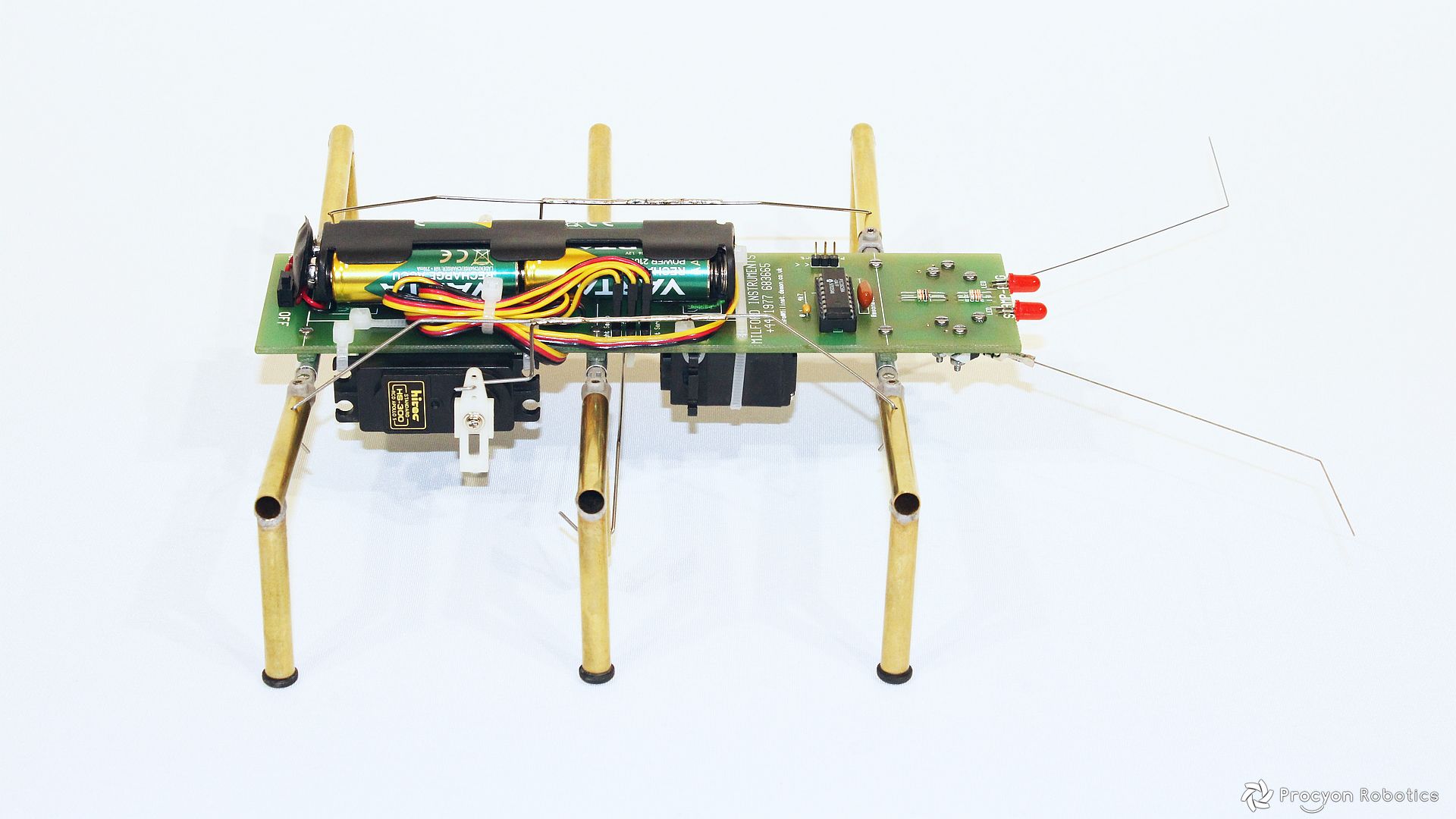

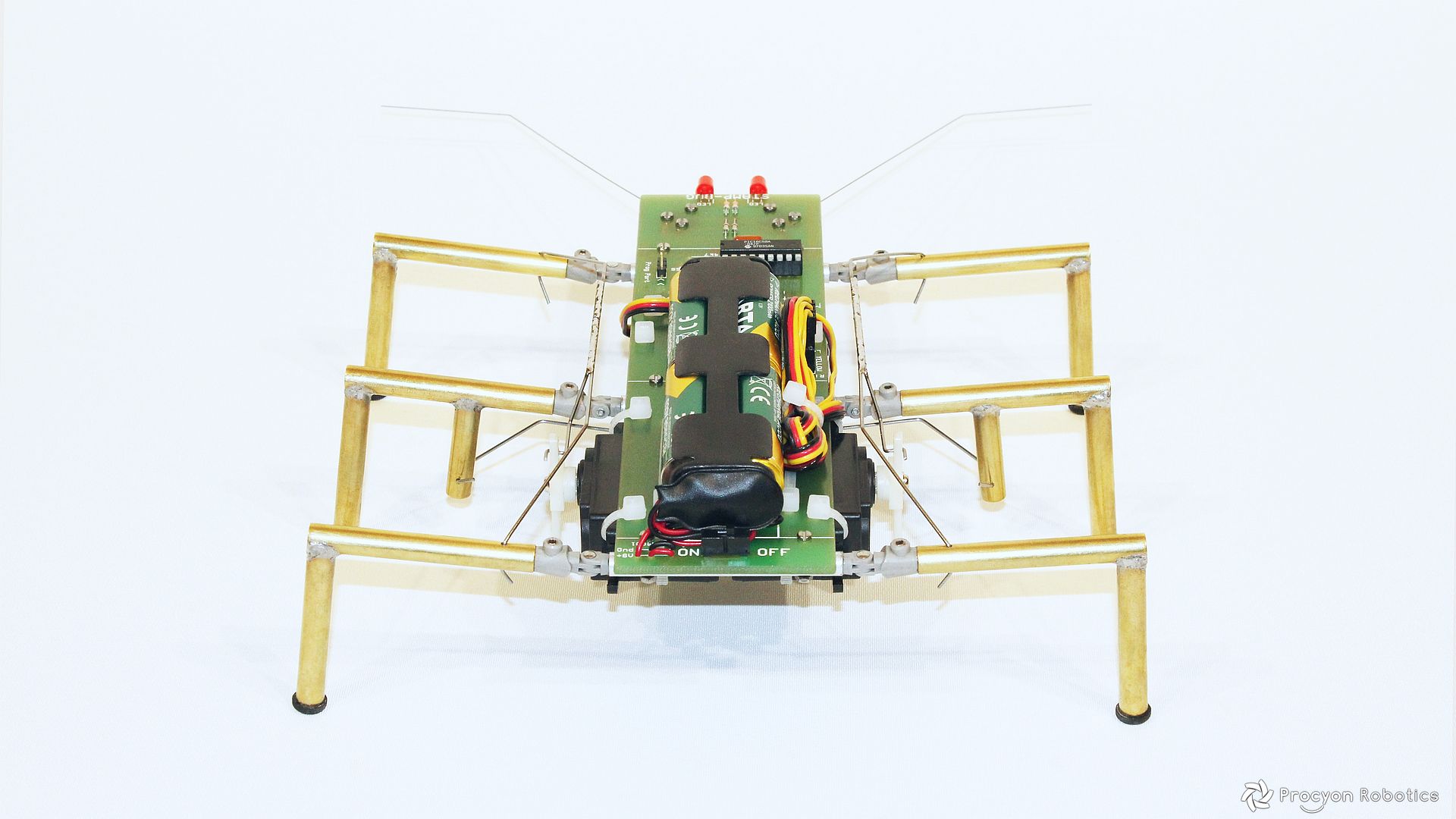

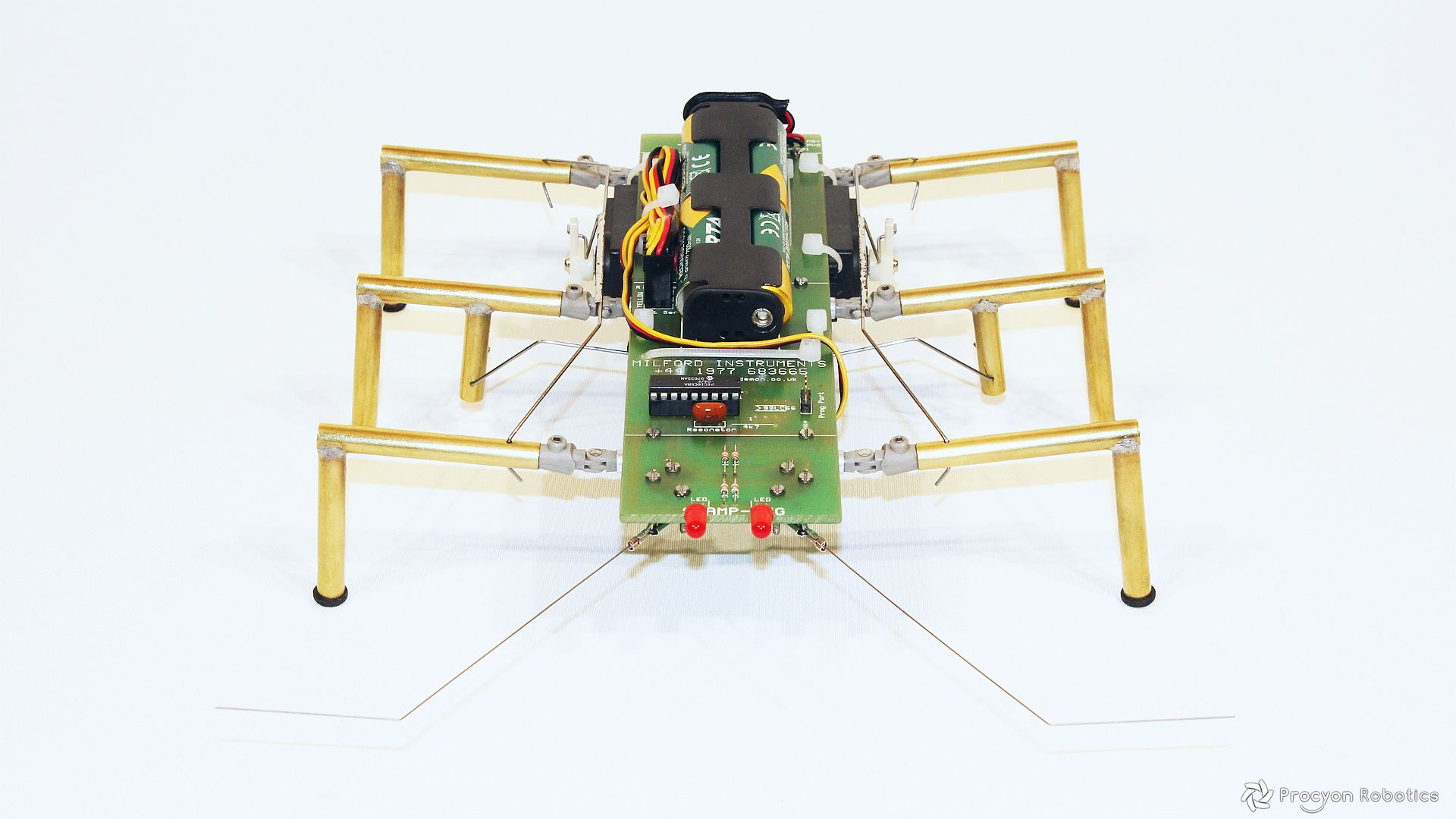

StampBug is an autonomous robot that walks using the alternating triangle method that is the simplest system that allows StampBug to walk forwards and backwards in a straight line and allows left or right turning. StampBug proceeds in the forwards direction until one of his feelers detects and obstacle, making him back up and then turn either left or right depending on which feeler was touched before proceeding on his way forwards again.

Specifications.

Codename: 5-955.

Height: 7 centimeters.

Width: 21,5 centimeters - (22,5 centimeters with feelers).

Length: 20,8 centimeters - (27,3 centimeters with feelers).

Weight: 286 grams - (393 grams with batteries).

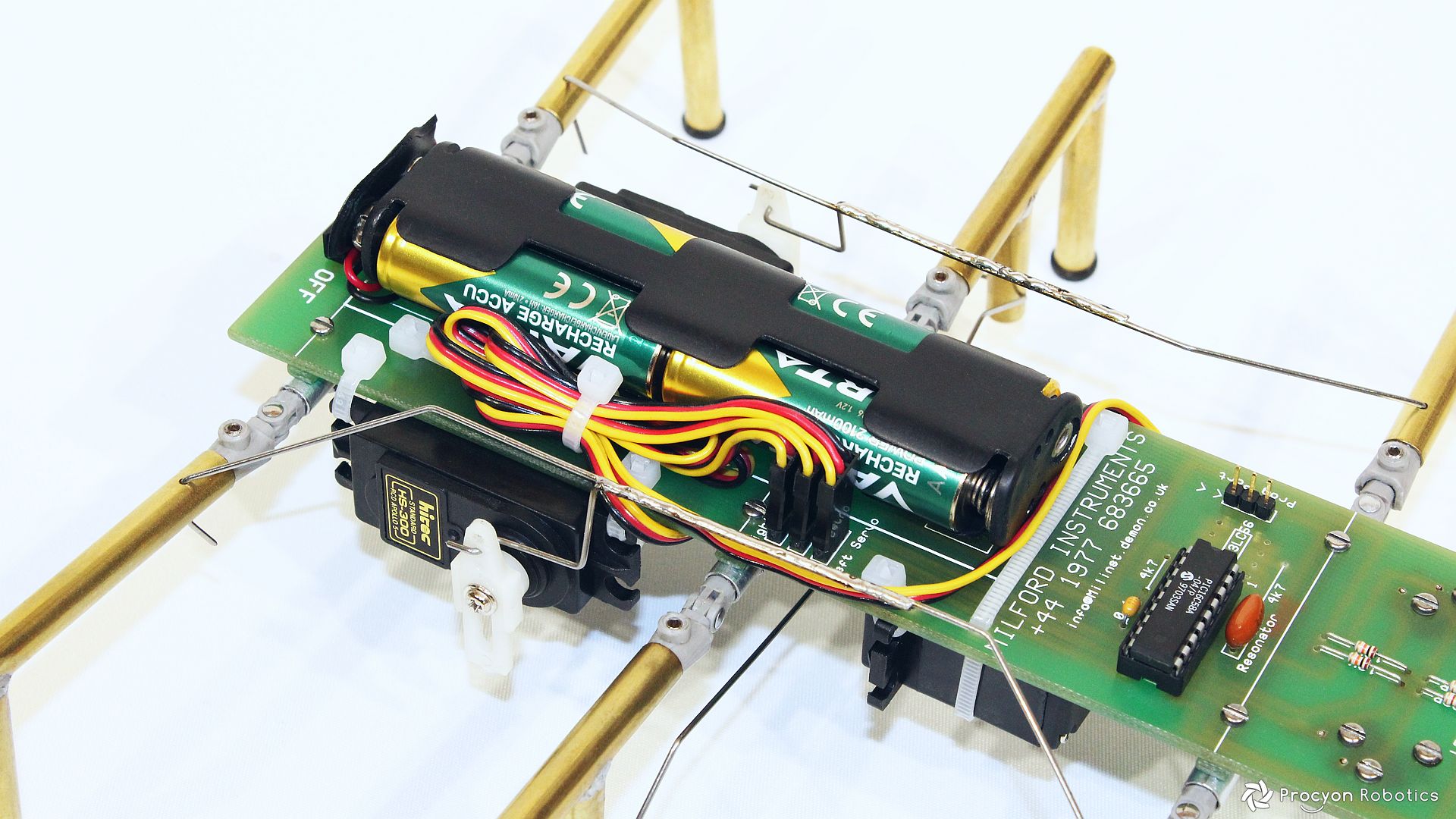

Main microchip: Microchip Technology PIC16C56A 8-bit microcontroller.

Autonomous: Yes.

Programmable: No.

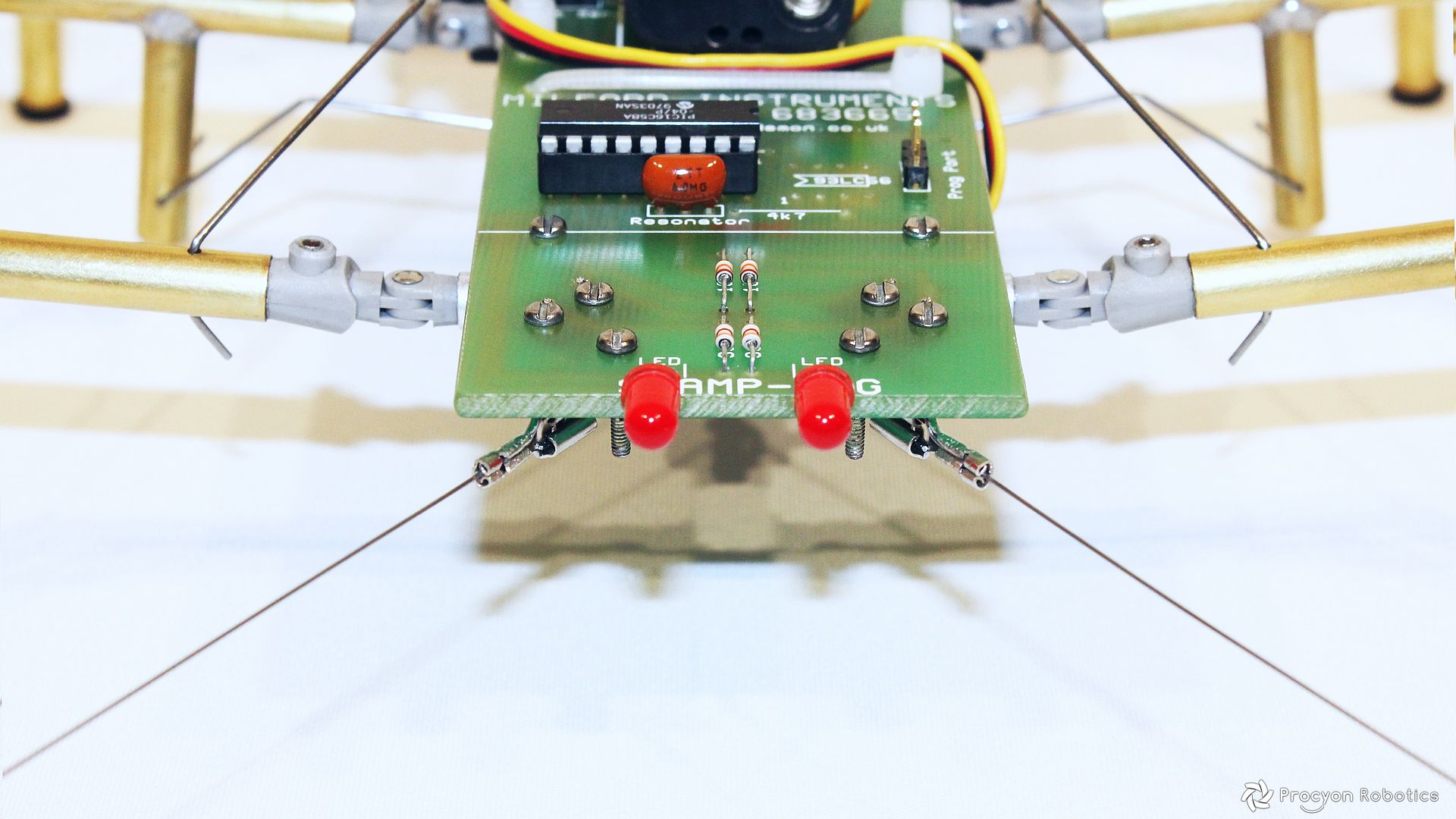

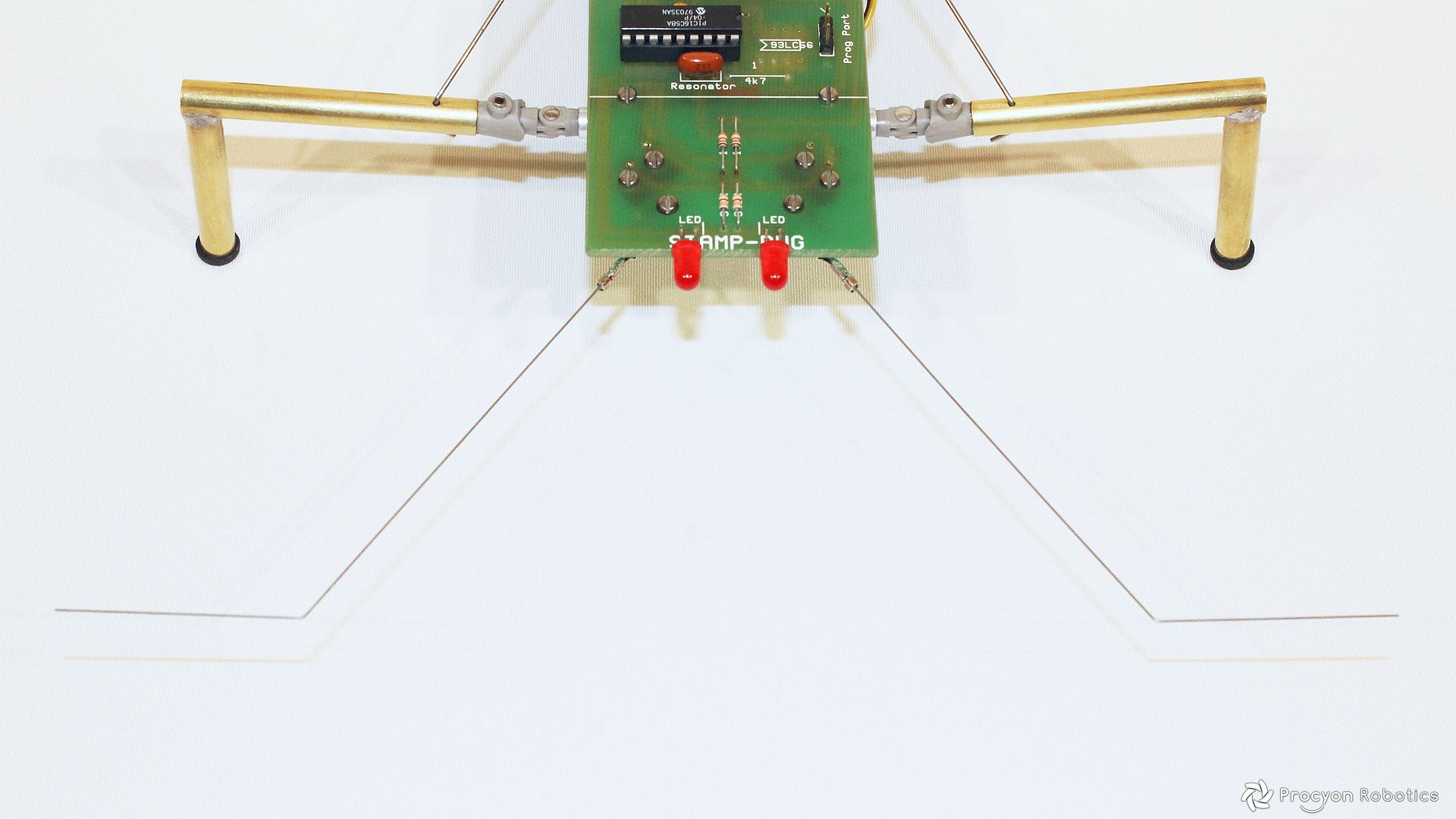

Inputs: 2X feelers with microswitches.

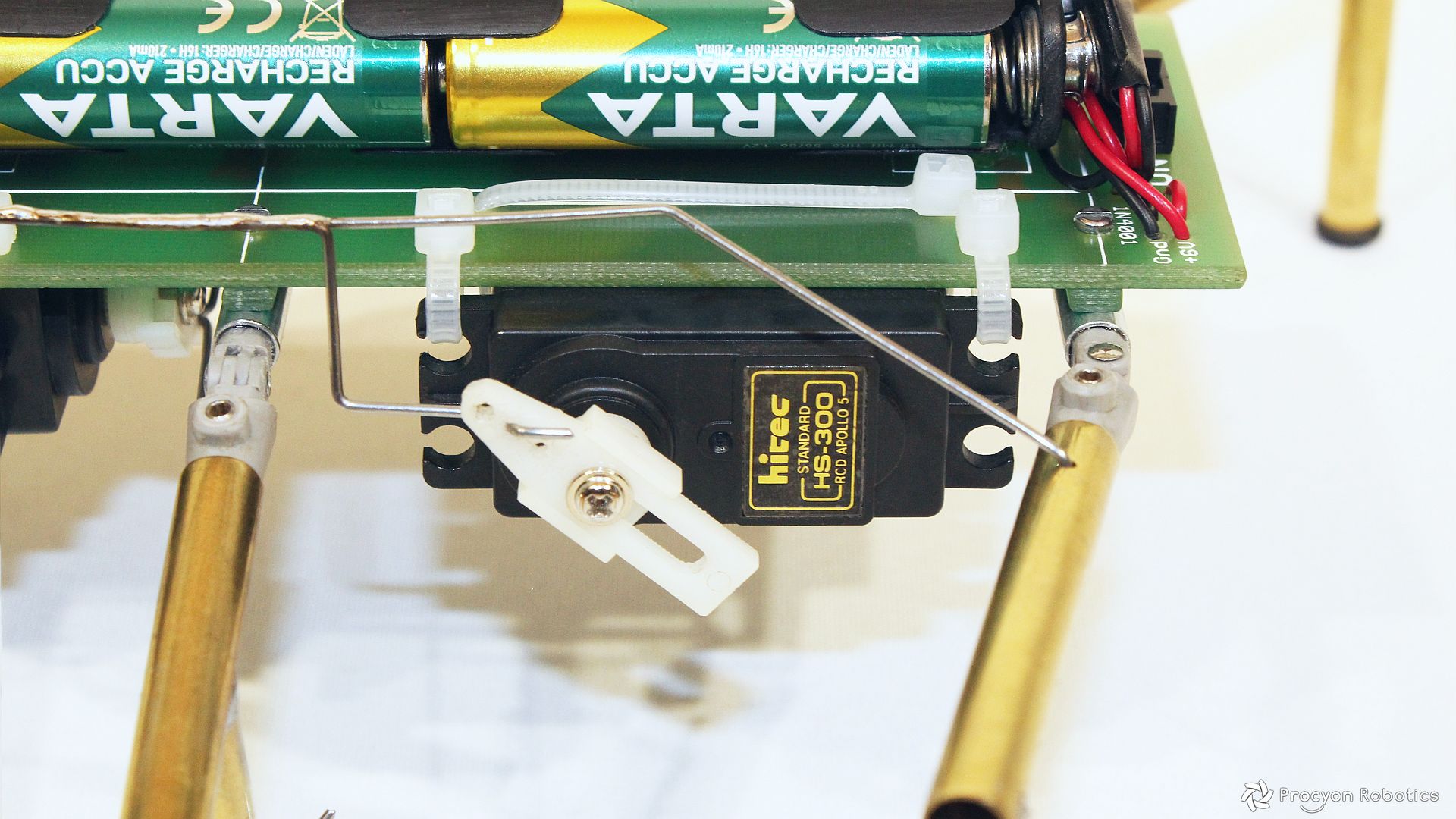

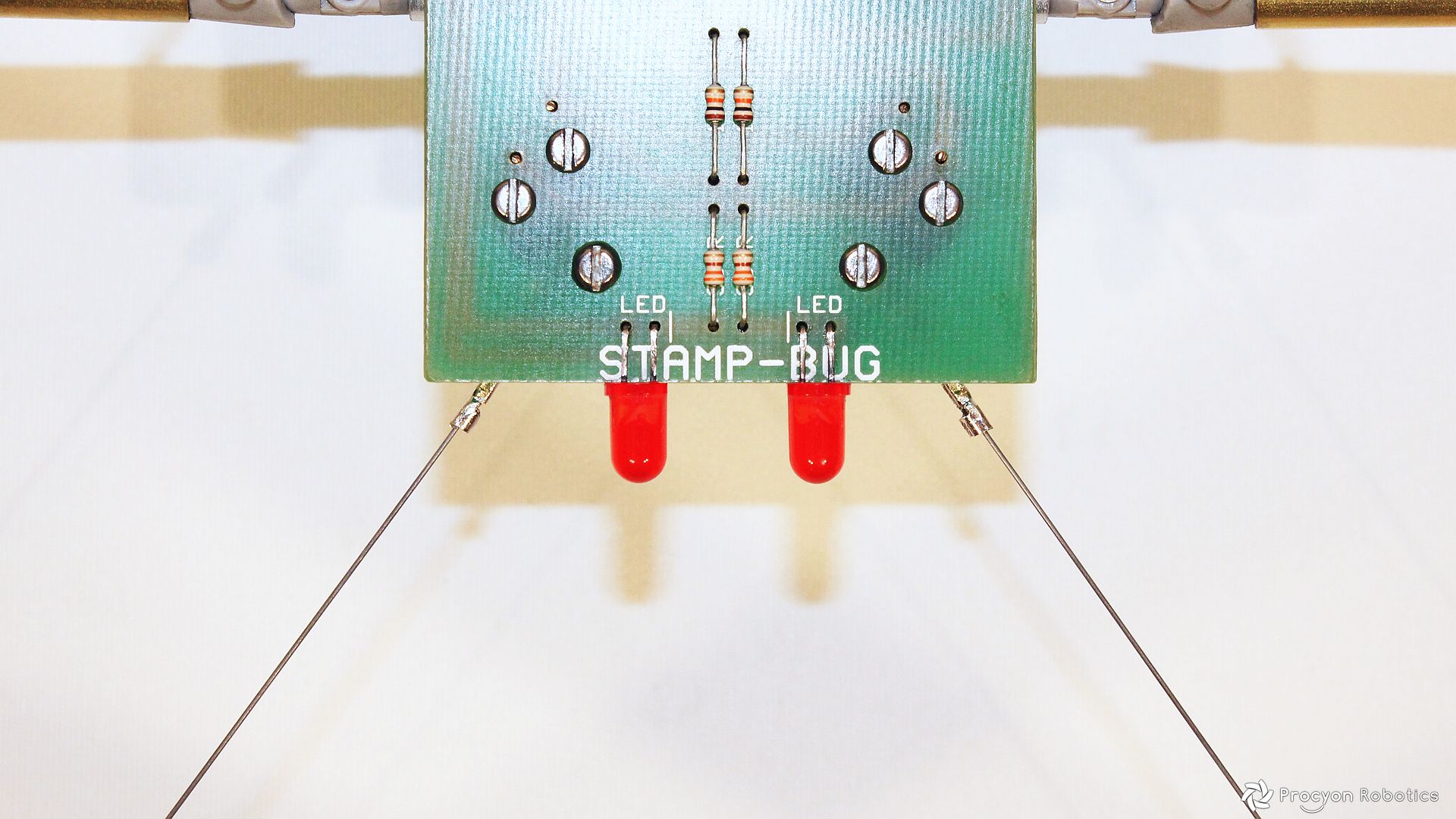

Outputs: 3X servos for walking. 2X blinking LED eyes.

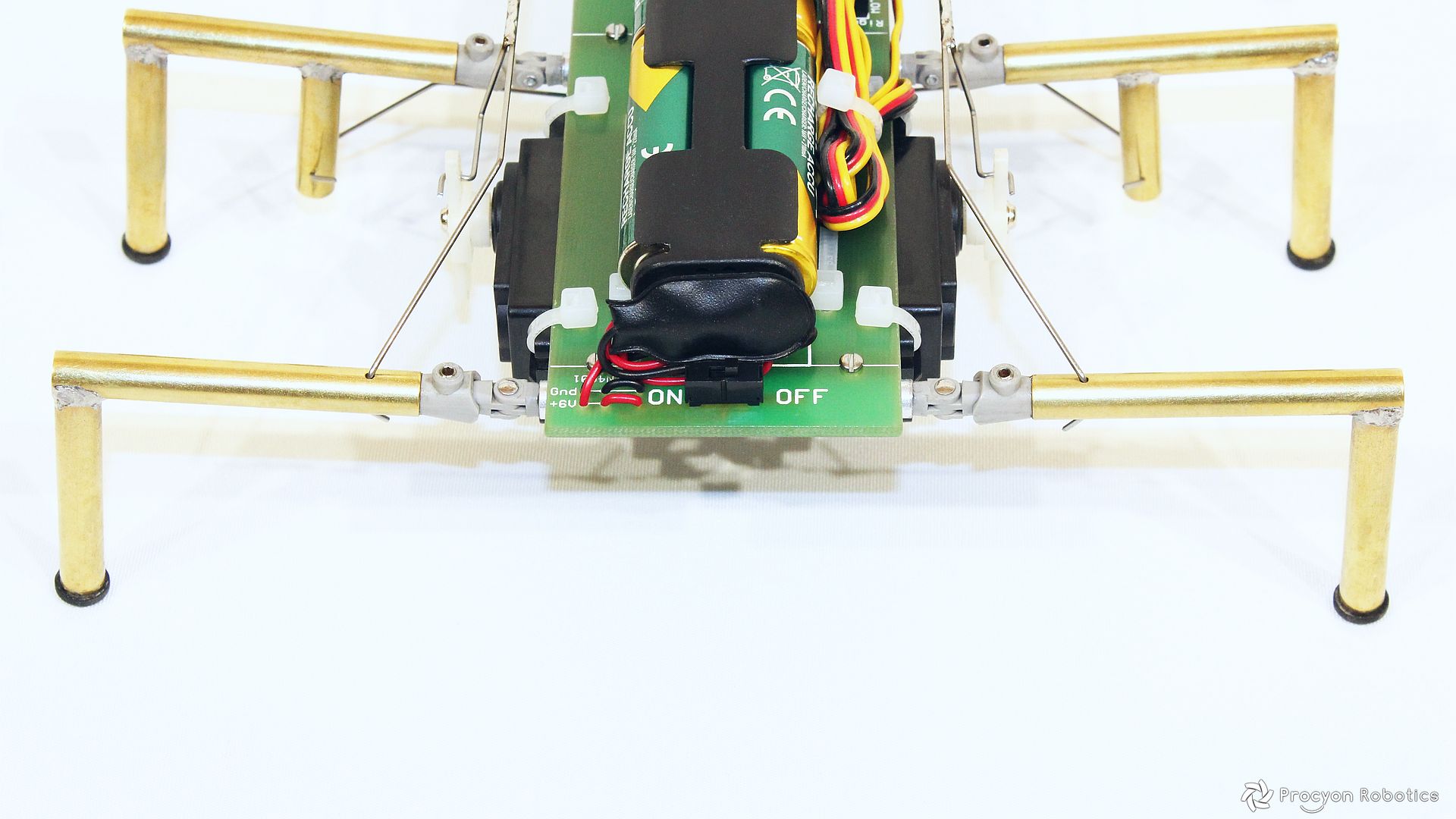

Power source: 4X "AA" 1,2V rechargeable batteries.

Accessories: None.

Trivia.

StampBug is named after the BASIC Stamp microcontroller architecture by Parallax that it is based upon.

Personal note.

This StampBug was my very first robot that I was gifted on my 9th birthday and is still very special to me.
StampBug was restored in 2026 after using a later purchased StampBug as reference to make it fully original again.
The full restoration of StampBug can be seen in my Robot Restoration YouTube channel.
